Choosing 3M™ Electrically Conductive Tapes for grounding, shielding, and attachment includes basic application requirements such as tape types, backings/carriers, fillers and adhesives. You can choose solutions for such specific factors as R target, contact surface type, adhesion level, bond line thickness, XYZ or Z conductivity path, operating temperature range and environmental conditions.
Whether you need a single sided tape to cover a shield can or a double coated tape to ground an FPC, we have you covered. Or you may need an adhesive transfer tape for laminating to a film for a custom stackup in sensor grounding. We have all three tape types for your unique designs. Choose from single sided, double coated, and adhesive transfer tapes.

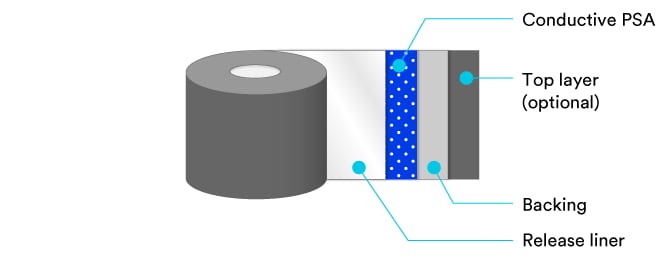

These electrically conductive tapes deliver XYZ-axis conductivity, based on conductive adhesive type and conductive backing type. Some tapes offer an optional top layer to provide additional features such as colour, anticorrosion, conductivity and insulating properties.

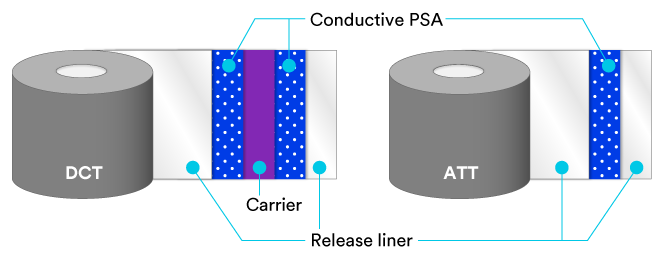

3M™ Double sided Electrically Conductive Tapes include:
Double-coated tapes (DCTs)
DCTs have a carrier with adhesive coated to both sides. These tapes are highly conductive through the adhesive thickness (Z-axis) and the adhesive plane (XY-Axis). Application can be similar to adhesive transfer tapes (ATT), but DCTs are easier to handle and die-cut.
Adhesive transfer tapes (ATTs)
ATTs deliver high conductivity through the adhesive thickness (Z-axis). The adhesive is coated directly to a release liner on both sides, making it ultra conformable. ATTs are often laminated to films and other materials for custom stackups.
3M™ Electrically Conductive single sided tapes feature backings and 3M™ Electrically Conductive double sided tapes feature carriers that provide stability and conformability as well as variable stretchability and shielding effectiveness.

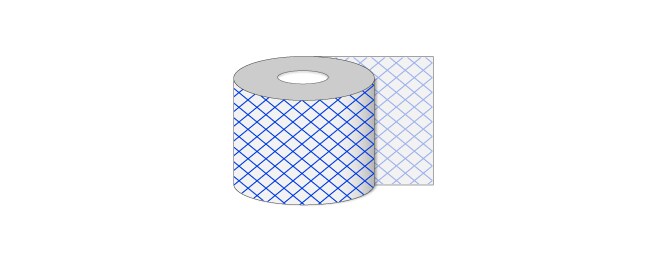

Many of our tapes include a fabric carrier or backing with conductive particles designed into them. Easy-handling conductive fabric tapes are very flexible and conformable, including around some corners, and offer increased tear resistance.

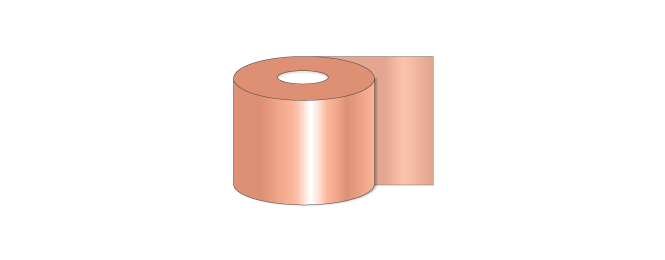

Backed by metal foils including copper, these tapes deliver added EMI shielding effectiveness and can be very conformable based on foil layer and adhesive layer thickness.
3M™ Electrically Conductive Adhesive Tapes combine 3M expertise in conductive particle matrices for extremely high grounding and shielding performance. Our variety of conductive fillers including Ni, Cu, silver, graphite and others are available for a wide range of electrical performance.
Our range of electrically conductive adhesives allows you to specify for multiple levels of adhesion to a variety of substrates and surfaces. Particle matrices within the adhesives can deliver conductive performance for contact R, XYZ/Z-axis conductivity and more. Our latest electrically conductive adhesives include our polyolefin conductive pressure sensitive adhesive (CPSA).
3M material science and EMI/RFI management expertise brings you a conductive polyolefin pressure sensitive adhesive chemistry helping to enable a longer shelf life for today’s demanding applications.
Do you have questions or need assistance with your Electrically Conductive tapes challanges? Send us a message. Include as much information as possible so we can respond promptly and accurately.
Filter
3M™ Electrically Conductive Adhesive Transfer Tape 9707
3M Stock
B00043204
3M™ Electrically Conductive Adhesive Transfer Tape 9701
3M Stock
B5005036256
3M™ Electrically Conductive Adhesive Transfer Tape 9732, Gray, 1050 mm x 50 m x 0,1 mm, 1 Roll/Case
3M Stock
B10165752
UPC
00051131121942
