3M provides EMI absorbers and magnetic shielding solutions in frequencies ranging from <1MHz to 10GHz. This broad portfolio allows you to choose based on operating, targeted, and peak frequency ranges. Features and options make our EMI absorbers and magnetic shielding materials simple to install and efficient to store.
The basic properties of our magnetic absorbers and magnetic shielding solutions include permeability and/or power loss performance, thickness, size, adhesive and more. You can further select based on additional, specific capabilities for your unique applications. Here are some of them:
3M™ EMI Absorber AB8000 Series - COMING SOON
3M™ EMI Absorber AB7000E - COMING SOON
3M™ EMI Absorber AB3000 Series - COMING SOON
This information is supplemental only and is not intended to replace the detailed information found in 3M technical data sheets. Actual performance is based on absorber size and placement in a specific application.

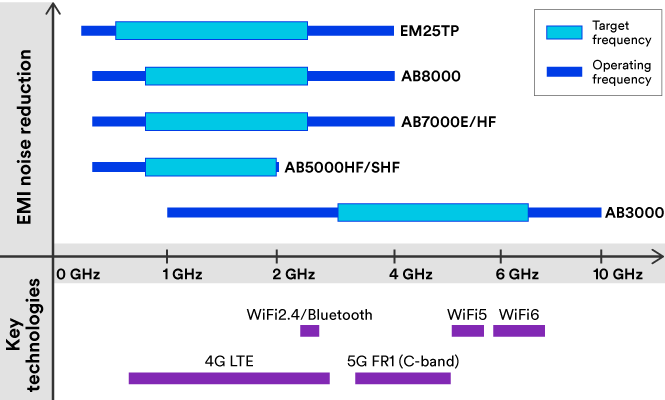

3M™ EMI Absorbers and Magnetic Shielding Materials provide targeted permeability and magnetic loss level for high performance at operating frequencies up to 10 GHz.
Frequency range is where the imaginary part of the permeability graph exceeds ~50% of its maximum value.
Target frequency range is a narrower range of frequencies for peak performance in key applications (ie. LTE, Wi-Fi).

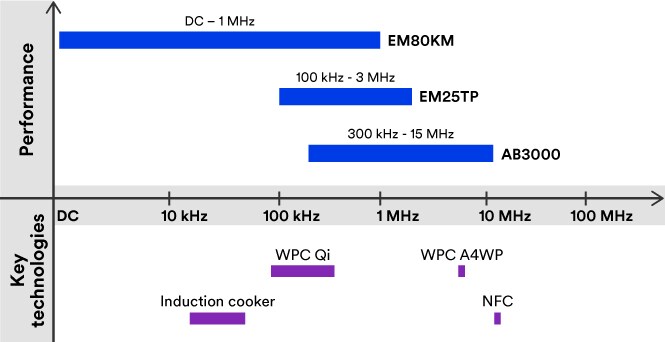

3M EMI/EMC shielding solutions include materials that deliver targeted permeability for frequencies under 3 MHz and excellent broad frequency EMI absorbing performance from 200 MHz – 4 GHz.
Do you have questions or need assistance with EMI Absorbers challenges? Send us a message. Include as much information as possible so we can respond promptly and accurately.
Filter
3M™ EMI Absorber AB5100HF, Gray, 210 mm x 10 m x 1,0 mm, 1 Roll/Case
3M Stock
B40022846
UPC
00051141415673
3M™ Flux Field Directional Material EM25TP
3M Stock
B5005102017
3M™ EMI Absorber AB5100SHF, 1.0 mm, 210 mm x 297 mm x 1.0 mm
3M Stock
B00021972
UPC
00051131288485
3M™ EMI Absorber AB6005HF, Gray, 100 mm x 10 m, 1 Roll/Case
3M Stock
B40044761
