3M has long been the supplier of choice for challenging helicopter rotor blade bonding and surface protection applications. Learn more.
Rotor Blades
Our world class surface preparation, structural adhesive bond primers, films and erosion protection films are approved and trusted by rotorcraft OEMs worldwide. They provide toughness, durability and resistance to temperature, minor impacts and erosion in some of the harshest and most challenging of environments.
-
Surface Pre-TreatmentThe 3M sol-gel products provide surface treatment and adhesion enhancement performance on metal substrates on par with conventional chemical etch and anodize systems. Enables “on-wing” surface preparation for metal bond applications for challenging substrates such as aluminum, titanium, nickel and stainless steel. Complimentary to 3M corrosion inhibiting bond primers such as EW-5005 and EC-3917.
Recommended Products:
-
Structural Adhesive Bond Primers3M corrosion inhibiting bond primers ensure long term durability for the bonded substrates. These products are available in conventional solvent based chromated versions as well as water based chromated and non-chromated versions. They are compatible with both conventional etch and anodize surface preparations as well as grit blast–sol gel.
Recommended Products:
3M™ Scotch-Weld™ Structural Adhesives Primer EC-3924B
3M™ Scotch-Weld™ Structural Adhesives Primer EC-3917
-
Structural Adhesive Films and Pastes3M structural adhesive films are designed for high pre-bond humidity performance, fracture toughness and peel strength on metals and composites, with flexible cure cycles. Additionally, these adhesives are used to bond 3M polyurethane protection films and 3M Cocure films to rotor blades.
Recommended Products:
3M™ Scotch-Weld™ Structural Adhesive Film AF 3109-2
3M™ Scotch-Weld™ Structural Adhesive Film AF 163-2
3M™ Scotch-Weld™ Structural Adhesive Film AF 191
3M™ Scotch-Weld™ Structural Adhesive Film AF 30
-
Core Splice Structural Adhesive Films3M core splice adhesive films are low density structural adhesives that expand to a high strength, low density foam with heat. They are generally used to splice honeycomb cores of differing cell sizes as well as other vertical bonding applications.
Recommended Products:
3M™ Scotch-Weld™ Structural Core Splice Film AF 3024
3M™ Scotch-Weld™ Structural Core Splice Film AF 3002
-
Cocure Films3M Cocure films provide built-in erosion protection of composite rotor blade surfaces. Able to be co-cured with the composite skin or bonded to the surface of the rotor blade, these films provide a more durable alternative to paint or other coating systems and can be used on composite surfaces including leading edges and blade tips.
Recommended Products:
3M™ Polyurethane Protective Tape 8730NA
-
Polyurethane Protection Films and Tapes3M’s high-performance Polyurethane Protective Tapes are a cost-effective way to help prevent damage to helicopter rotor blades from erosion due to rain and sand. Used to protect the leading edge, these tapes are simple to apply and quick to remove, making them an ideal solution for in-field protection.
Recommended Products:
3M™ Polyurethane Protective Tape 8545HS
-
Urethane Repair Pastes3M urethane repair pastes are used to quickly repair polyurethane erosion films on helicopter rotor blades in-service without needing to remove or replace the blade, therefore maintaining aircraft readiness. These two-part pastes cure to erosion-resistant urethane elastomers and provide long-lasting protection from further damage.
Recommended Products:
-

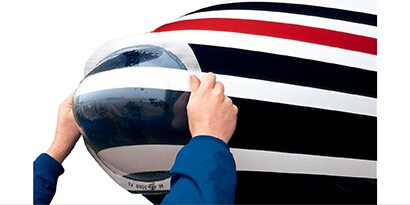

Polyurethane Protective Boots3M Polyurethane Protective Boots provide excellent erosion and impact protection for many aircraft parts and can be created to fit a wide variety of needs. Our portfolio of products includes complex shapes to protect main and tail helicopter blades leading edges, as well as tip caps. Platforms include UH-60M, AB 139, A 109 S, and AW 101.
Recommended Products:
3M™ Polyurethane Protective Boot SJ8667HS FP-532 (AB 139)
3M™ Polyurethane Protective Boot SJ8667HS FP-557 (A 109 S)
3M™ Polyurethane Protective Boot SJ8667HS FP-558 (A 109 S)
3M™ Polyurethane Protective Boot SJ8667HS FP-595 (AW 101)
3M maintains partnerships with every major aircraft OEM in the world. Find your spec today.
